Prefab Homes Lake Joseph 2026: What Estate and Island Buyers Need to Know Before Signing Anything
Last updated: May 3rd, 2026
Written by building specialists at My Own Cottage
Lake Joseph is Muskoka’s most private lake — and if you’re researching prefab homes here, you already know that.
You’re not browsing. You own a lot, you’re close to buying one, or you’re evaluating whether a specific parcel on the western arm, Hamer Bay, or the Yoho Island corridor can actually support the compound you have in mind. At CAD $2.5M to $10M-plus all-in before land, the stakes of getting this wrong are significant.
The information you need doesn’t exist online. Search “prefab homes Lake Joseph” and not one result was written for a buyer who owns a specific Lake Joe lot.
That’s the gap this guide fills — organized around the four lot scenarios that determine which permits apply, which barge staging area serves your parcel, how a compound build is sequenced, and what the complete all-in cost looks like before you commit to anything.
Before we break down lot types, permits, and delivery constraints, it’s important to see what a correctly executed project actually looks like on this lake.

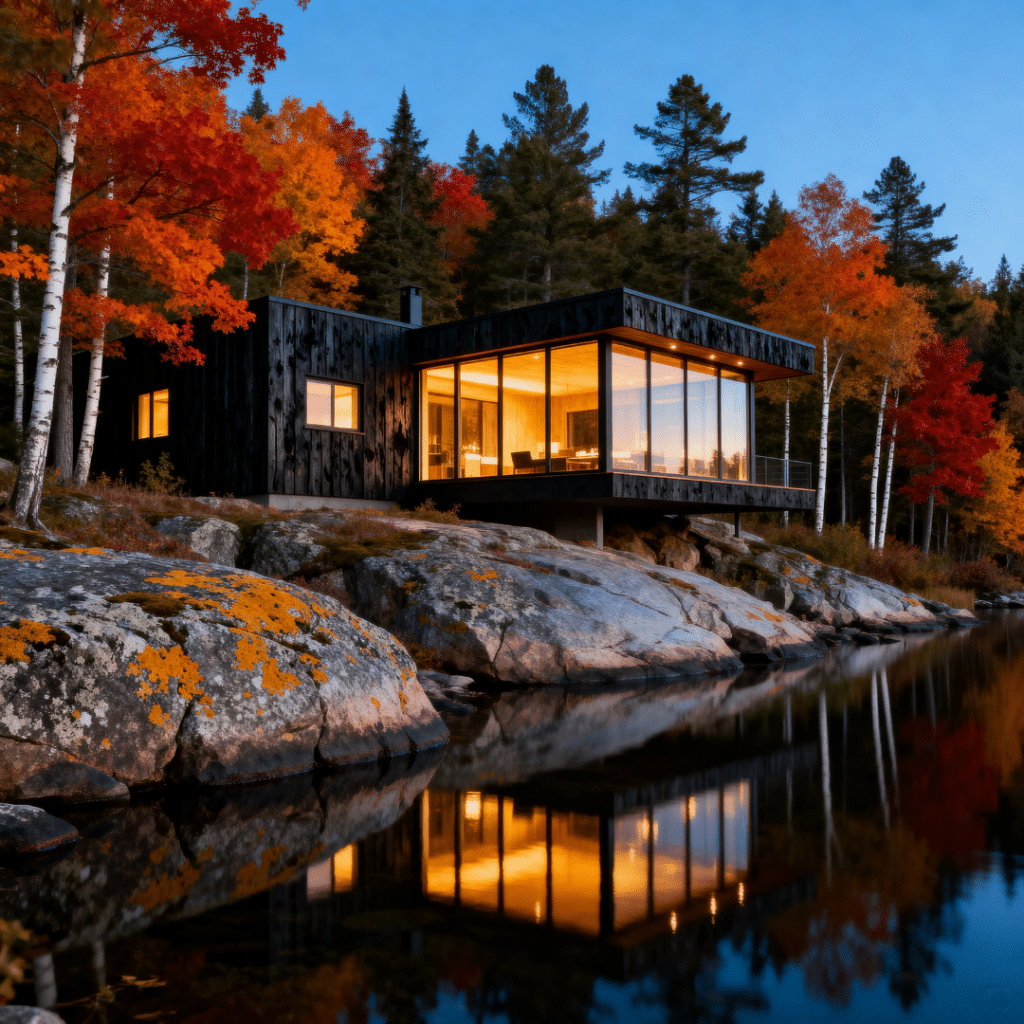

A completed luxury prefab estate on Lake Joseph — main cottage and boathouse integrated on Canadian Shield granite, delivered and installed via barge and crane for true four-season waterfront living.
My Own Cottage is based in Orillia — 54 kilometres south of Bracebridge via Highway 11 — and delivers OBC compliant prefab homes across Lake Joseph including the Port Sandfield corridor, Hamer Bay, Foots Bay, Yoho Island, Stanley House Road, and the Whalon Bay trophy-estate corridor.
For the complete District-wide guide see our prefab homes Muskoka buyer’s guide.
Buyers comparing Lake Joseph against Lake Rosseau — see our prefab homes Lake Rosseau guide.
For the Lake Muskoka framework see our prefab homes Lake Muskoka guide.
Book a free Lake Joseph site assessment — lot type, ZBL 2014-14 zoning classification, tree cutting permit requirements, barge staging area, and verified all-in cost confirmed before any commitment is made.
Why Lake Joseph Makes Prefab the Rational Construction Choice
The case for prefab on Lake Joseph rests on five site realities that converge here in ways no other Muskoka destination presents simultaneously.
Precambrian Shield bedrock sits at or near grade on the majority of waterfront lots — making conventional basement excavation either impractical or a six-figure blasting event. The May-to-October effective build season means every week lost to sequential trade scheduling cannot be recovered without waiting a full year.
The Township’s 15.2-metre natural vegetation buffer under ZBL 2014-14 rewards construction methods that minimise ground disturbance. Tree Conservation By-law 2022-107 requires a permit before any site clearing — a layer absent from most Ontario cottage country markets.
And on a lake where adjacent properties may be worth eight figures and privacy is enforced as much socially as legally, a crane-set modular installation completed in days is not merely an efficiency. It is a neighbourly virtue.
On water-access and island lots, the case for prefab is not about speed or cost — it is about site impact.
My Own Cottage’s crane-set modular installation, completed in a single day on pre-installed helical piers in a controlled manufacturing environment, disturbs less ground within the Township’s regulated 15.2-metre buffer than weeks of conventional framing.
That advantage is quantifiable in Conservation Authority permit processing time, Township reviewer goodwill, and the relationships that make complex Lake Joseph builds run smoothly rather than contentiously.
The parallel build model — factory production running simultaneously with site preparation, foundation installation, and permit processing — compresses the build timeline in a region where losing a single season costs a full year of occupancy.
For the complete four-layer Muskoka permit framework see our prefab home permits Muskoka guide.
Lake Joseph — The Lake and Its Lots
Lake Joseph connects to Lake Rosseau through the Port Sandfield channel, spanned by the historic Port Sandfield swing bridge.
Key communities ringing the shoreline: Hamer Bay to the north, Foots Bay along the eastern reach, Yoho Island near the centre, Stanley House and Whalon Bay in the trophy-estate corridor, and the Lake Joseph Club — a members-only enclave anchoring the lake’s social fabric for over a century.
Typical waterfront frontage runs from 100 to 150 feet at market entry, scaling to 400 and 500-plus feet on legacy estate properties.
West-facing and southwest-facing exposures command the strongest premiums.
Price benchmarks from 2025 Muskoka market reporting place Lake Joseph entry-level at CAD $2M to $3.5M, family compound properties at CAD $4M to $5M, and trophy and estate parcels in the Stanley House Road and Whalon Bay corridor at CAD $6.25M-plus.
All-in estate build programmes — land plus construction — sit firmly in the CAD $2.5M to $10M-plus range.
Your Lake Joseph Lot Type Determines Everything That Follows
Before any floor plan is selected, any engineering is commissioned, or any builder conversation is scheduled, one determination shapes every decision: which of the four Lake Joseph lot scenarios applies to your property.

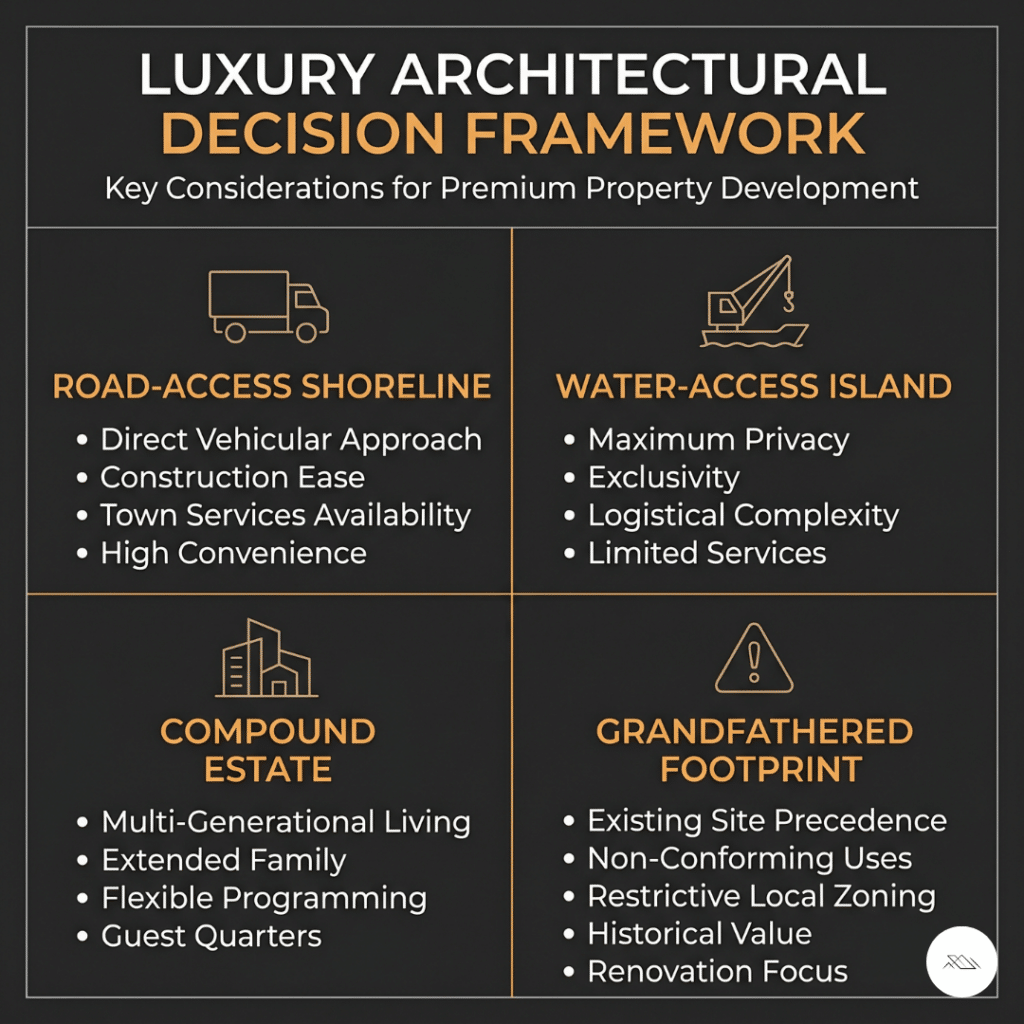

The four Lake Joseph lot scenarios that determine everything — delivery method, permit pathway, and total build cost before you purchase land.
| Lot Type | Delivery Method | Est. All-In Range (Excl. Land) |
|---|---|---|
| Road-accessible shoreline | Flatbed + crane | CAD $1,500,000–$3,500,000+ |
| Water-access-only or island | Barge from Port Sandfield or Foots Bay + crane | CAD $2,000,000–$5,000,000+ |
| Compound estate lot | Integrated multi-structure barge sequence | CAD $3,500,000–$10,000,000+ |
| Grandfathered footprint | Depends on access type | Confirm at site assessment |
Excludes land. Lake Joseph waterfront: CAD $2,000,000 to $6,250,000-plus. HST at 13 percent applies.
For the complete five-layer Muskoka cost breakdown across all lot types see our Muskoka prefab home prices guide.
Road-Accessible Shoreline Lots
The most predictable Lake Joseph build scenario. Standard flatbed delivery via Highway 169 and local Township roads. ZBL 2014-14 WR zoning applies.
Tree cutting permit required under By-law 2022-107 before any site clearing. Conservation Authority Section 28 permit required for works within 30 metres of the shoreline.
Water-Access-Only and Island Lots — Hamer Bay, Yoho Island, and the Western Arm
The dominant premium lot type on Lake Joseph. Barge delivery from Port Sandfield (serving the western arm, central lake, and Yoho Island corridor) or Foots Bay (serving the eastern reach).
Practical delivery window: ice-out in late April through October.
This is where prefab holds its clearest advantage over site-built construction — modules arrive factory-complete, compressing what would be months of sequential barge deliveries for a site-built project into one marine delivery and one crane day.
Compound Estate Lots — Sequencing the Full Programme
On Lake Joseph, the compound defines the asset — not just the main cottage.
Each structure carries its own permit stream, its own contractor, and its own delivery window.
Prefab construction is specifically advantageous in compound build sequencing. Addressed in full in the compound section below.
Grandfathered Footprint Lots — What Demolition Actually Triggers
A meaningful number of Lake Joseph’s most coveted lots carry existing cottages on footprints pre-dating current WR setback requirements.
Demolishing an existing cottage and replacing it with a new prefab home does not automatically preserve the grandfathered position — demolition frequently triggers full conformity with current ZBL 2014-14, meaning the replacement build must meet today’s 15.2-metre setback.
Pre-consultation with the Township planning department and the Conservation Authority is mandatory before any existing structure is demolished.
My Own Cottage manages this pre-consultation before any design concept is commissioned.
My Own Cottage confirms your lot type, ZBL 2014-14 zoning classification, and tree cutting permit requirements before any model is selected or any contract is signed.
Township of Muskoka Lakes ZBL 2014-14 — What Every Lake Joseph Buyer Must Confirm Before Design
The Township of Muskoka Lakes administers all Lake Joseph land use under Zoning By-law 2014-14 (consolidated).
Every buyer, builder, and architect must treat this by-law as the primary regulatory instrument.
It governs setbacks, vegetation buffers, boathouse parameters, site disturbance limits, and tree clearing in ways that directly shape both the building permit application and the day-of barge and crane delivery sequence.
The 15.2-Metre Setback and the High-Water Mark Survey
The minimum setback from the high water mark to any principal dwelling under ZBL 2014-14 is 15.2 metres (50 feet). This applies to all new construction and to replacement structures where any grandfathered position has been forfeited through demolition.
It also defines the crane placement and module landing zone on water-access lots — modules cannot be permanently set within the buffer.
The high water mark must be formally established by a licensed Ontario Land Surveyor, not estimated from the visible waterline, which can sit 2 to 5 metres waterward of the legal mark.
OLS fees: CAD $4,000 to $8,000.
The Natural Vegetation Buffer — Why Crane Mat Planning Is Mandatory
For lots registered after December 21, 1998, ZBL 2014-14 mandates a 15.2-metre natural vegetation buffer within the front yard setback zone.
Any clearing, grading, or alteration within it requires a site alteration permit and triggers a review under Tree Conservation By-law 2022-107.
Crane mat placement, temporary access routes, and staging equipment within the buffer must be part of a permitted site alteration plan — not improvised on delivery day.
Pre-engineered temporary matting systems are now standard practice among experienced Muskoka prefab crews for exactly this reason.
Tree Conservation By-law 2022-107 — The Step That Delays Lake Joseph Projects Most Often
Any removal of trees on a Lake Joseph property — anywhere on the lot, not just within the shoreline buffer — requires a permit under Tree Conservation By-law 2022-107.
This includes clearing crane swing paths, establishing module landing zones, and creating equipment access corridors.

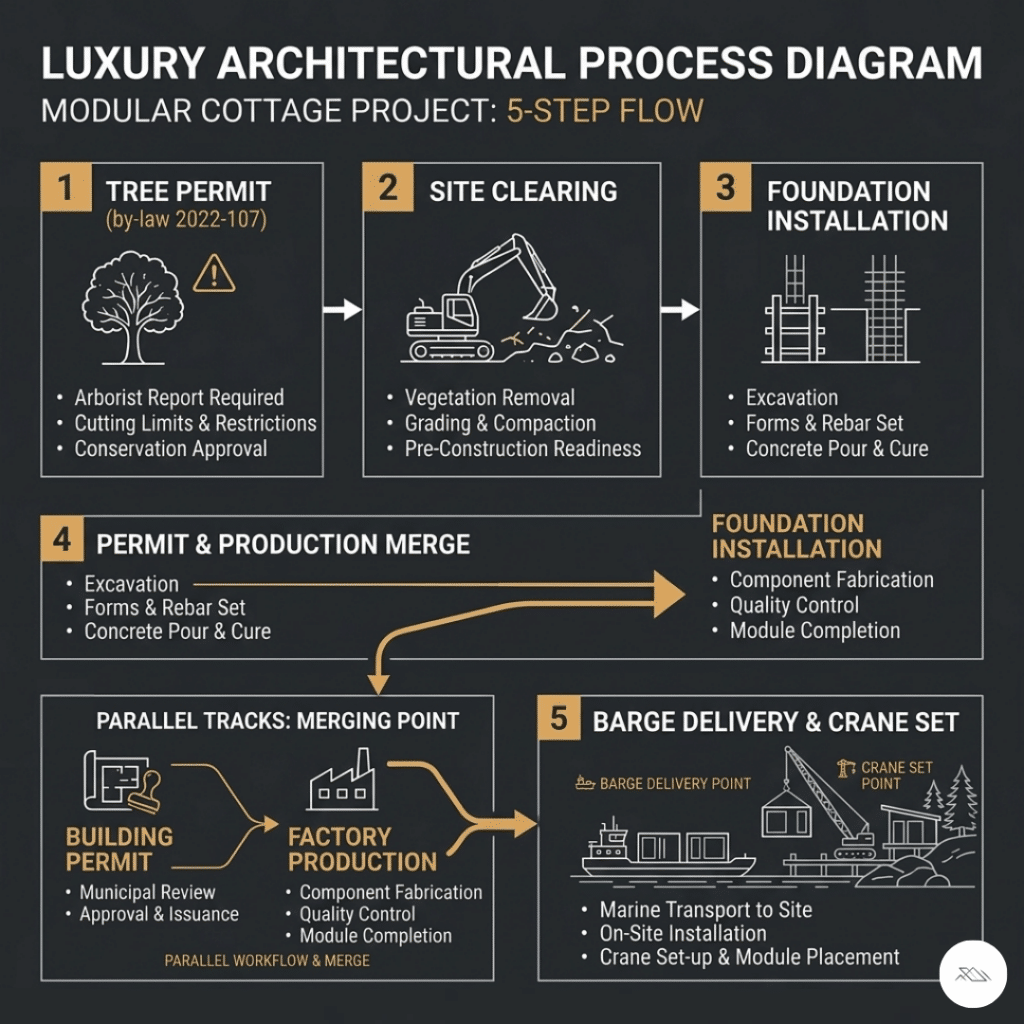

The five-step regulatory sequence that determines whether your Lake Joseph build stays on schedule — or misses an entire barge season.
The correct regulatory sequence:
• 1. Tree permit application submitted and approved
• 2. Trees cleared and crane swing path established
• 3. Foundation installation
• 4. Building permit approved and factory production underway simultaneously
• 5. Barge and crane delivery
Beginning site clearing without the tree permit in hand is the most common and most costly regulatory misstep on Lake Joseph projects — the delay can push a project past the May-to-October barge window, costing a full construction season.
Boathouse Regulations — Height, Footprint, and the Habitable Upper-Storey Rule
Under ZBL 2014-14: maximum boathouse height 7.6 metres (25 feet) from grade; habitable upper-storey recreational space requires a minimum 61-metre setback from the high water mark; side yard minimums for boathouses and docks 4.6 metres (15 feet).
Buyers who design Lake Joseph compounds assuming upper-level boathouse guest accommodation on a standard lot discover this constraint after their architect has produced complete drawings — an expensive and avoidable error.
Confirm boathouse permissions with the Township before any compound design is commissioned.
Short-Term Rental Licensing — By-law 2025-049
By-law 2025-049 requires mandatory STR licensing across the Township of Muskoka Lakes.
Any newly constructed Lake Joseph cottage intended for Airbnb or VRBO must be licensed before offering for rent.
New builds designed with STR revenue in mind must confirm licence eligibility at the permit application stage — the framework includes occupancy caps, life-safety upgrade requirements, and enforcement provisions that affect design decisions made during building permit preparation.
For the complete four-layer Muskoka permit framework with verified development charges see our prefab home permits Muskoka guide.

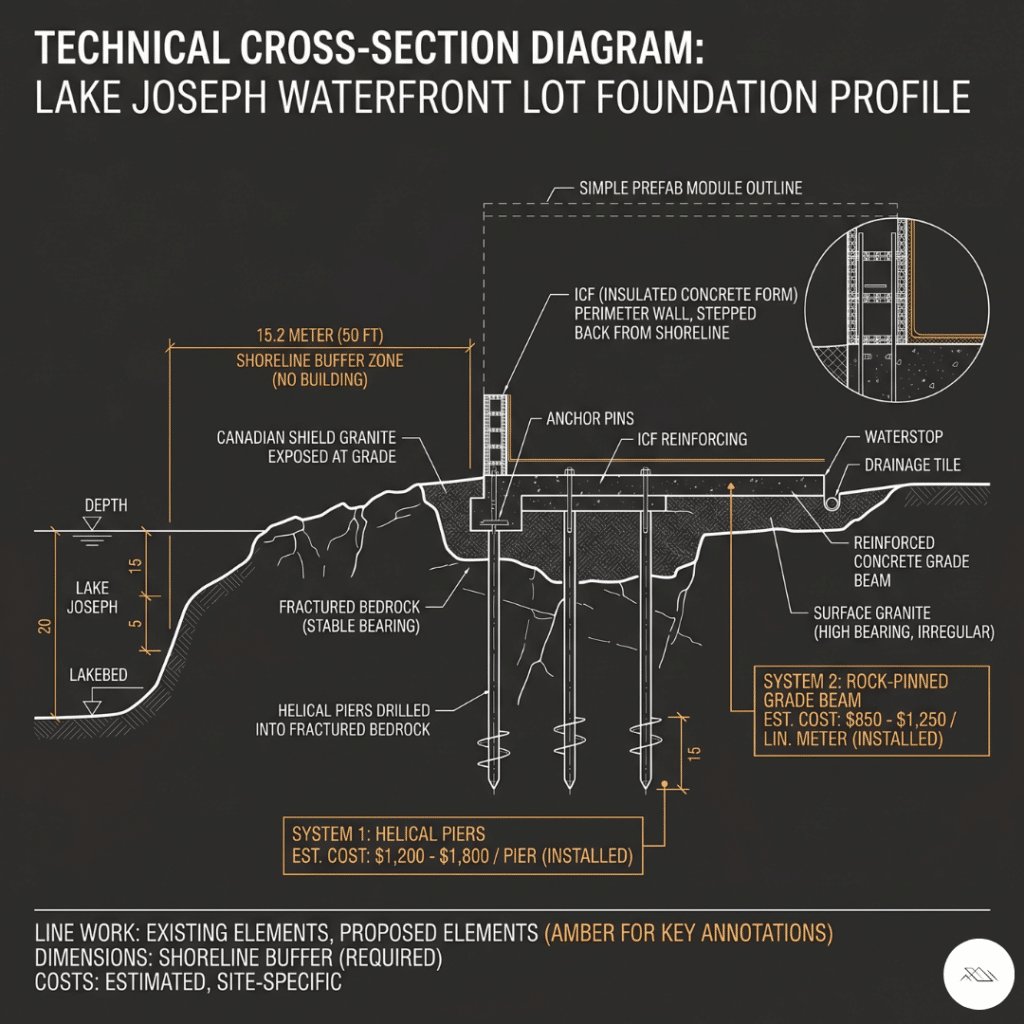

Canadian Shield Foundations on Lake Joseph — The Decision That Sets Your Budget
Foundation choice is the most consequential single site decision before any model is selected.
Precambrian Shield granite at or near grade makes conventional poured-concrete basement foundations either impractical or prohibitively expensive on most Lake Joseph waterfront lots.
Why helical piers dominate on Lake Joseph: most shoreline lots sit on exposed or shallow Canadian Shield granite where conventional excavation is not viable.
Prefab’s lighter modular components and pre-engineered load paths pair naturally with the foundation systems this geology actually supports — and the high-quality building envelope performance that four-season occupancy demands begins with a foundation matched to the rock.
Helical Piers — The Standard on Lake Joseph
Steel helical shafts hydraulically driven into fractured granite or anchored by resin-grouted techniques. No excavation, no concrete forms, no spoil removal.
Pier heads adjust in height to create a level bearing surface across uneven granite outcrops — modules crane-set the same day piers are inspected with no concrete cure time.
On island lots, compact tracked equipment is barged from the staging area and positioned for pier installation, producing minimal site disturbance within the regulated buffer.
Cost: CAD $18,000 to $45,000 on a Lake Joseph lot.
ICF and Cantilevered Designs for the Estate Scale
ICF is appropriate where soil depth permits a continuous perimeter wall — typically interior or rear portions of the building envelope stepping back from the granite shelf.
Cantilevered and stilted structural designs are increasingly the architectural signature of Lake Joseph’s contemporary estate builds.
This minimizes bedrock contact, preserving the granite aesthetic, and eliminating the ground disturbance that conventional foundation work generates within the regulated buffer.
When Blasting Is Required and the Contingency Budget
Blasting is unavoidable when the building footprint intersects a rock shelf that cannot be avoided through design.
A blasting permit from the Township is required in addition to the standard building permit.
Budget a contingency of CAD $75,000 to $150,000-plus where geotechnical investigation reveals significant rock intrusion. A licensed geotechnical engineer must be engaged before foundation design — ideally before the purchase offer firms up.
| Foundation Type | Typical Cost on Lake Joseph | Best Scenario |
|---|---|---|
| Helical piers | CAD $18,000–$45,000 | Island and shoreline lots on Shield terrain |
| Rock-pinned grade beam | CAD $25,000–$55,000 | Surface bedrock, insufficient overburden for piers |
| ICF perimeter | CAD $40,000–$90,000 | Excavatable terrain, four-season year-round occupancy |
| Rock-blasting + slab | CAD $75,000–$150,000+ | Constrained footprint where design cannot avoid rock shelf |
Barge and Crane Delivery to Lake Joseph
Water-access-only lots are a defining feature of Lake Joseph’s most coveted parcels — not an exception.
Prefab’s factory-completeness advantage is most pronounced here. Modules arrive factory-complete: interiors, cabinetry, flooring, and mechanical rough-in finished before delivery.
Trades access compresses to mechanical connections, module joining, and finishing details — on a lot where every tradesperson, every material load, and every tool arrives by boat, that compression is a cost and risk management imperative that no site-built construction method can match.
Budget CAD $25,000 to $80,000 for a complete barge-plus-crane-plus-staging operation.
Crane rental runs CAD $3,000 to $12,000 per day — a two-day crane window standard for a four-to-six module main cottage represents CAD $6,000 to $24,000 before barge mobilisation. Budget one weather-buffer day minimum.
Port Sandfield serves the western arm, central lake, and Yoho Island corridor.
Foots Bay serves the eastern reach and Hamer Bay corridor. Confirming which staging area serves your lot is a pre-delivery logistics step.
The barge window runs May through October — wind is the primary day-of constraint, and Lake Joseph’s open western fetch generates choppy conditions faster than protected lake alternatives.
My Own Cottage coordinates marine contractor relationships, staging area scheduling, and crane positioning as a single integrated sequence for every water-access project.

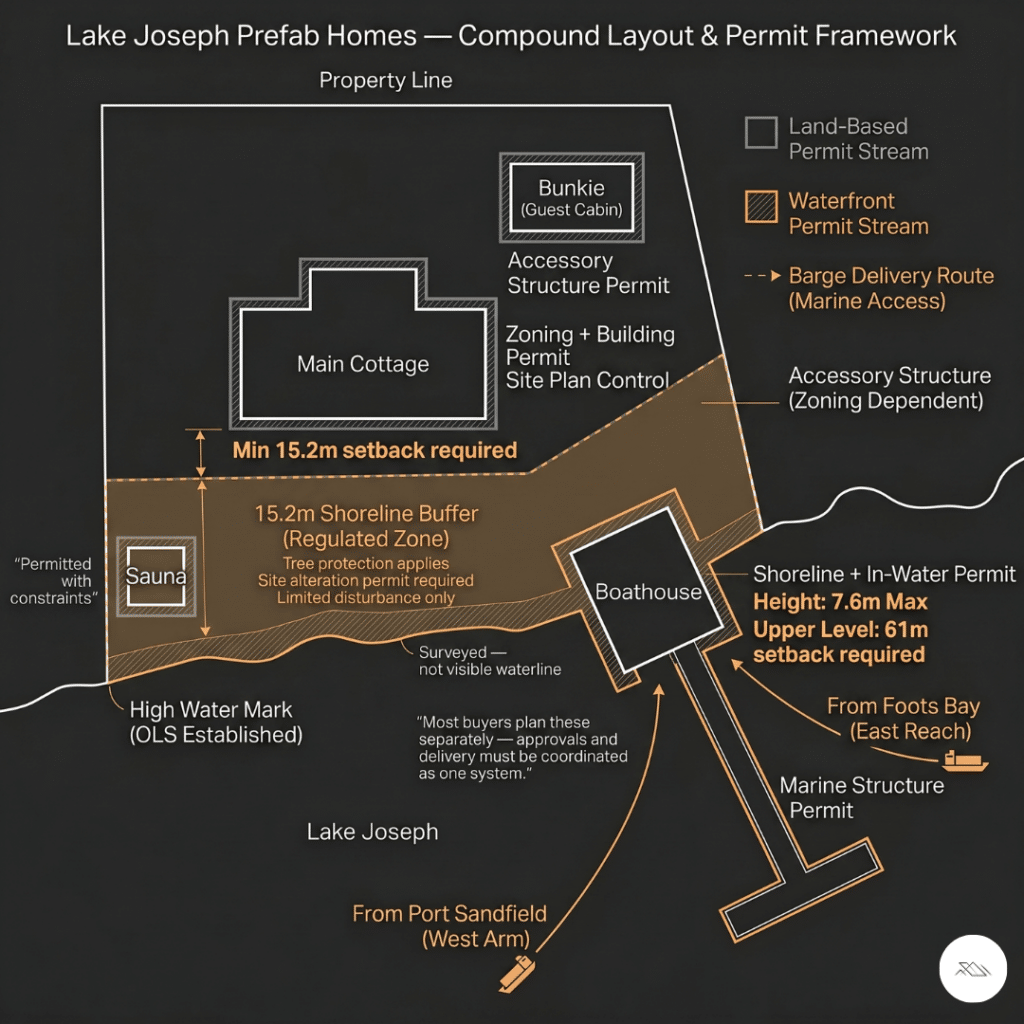

The Lake Joseph Compound — Programming a Prefab Estate
The defining spatial vocabulary of Lake Joseph luxury is a compound: main cottage, boathouse, bunkie or guest cabin, sauna, and dock — each with its own permit stream, contractor, and delivery window.
Together they can be planned and delivered with a coherence that ad-hoc site-built additions rarely achieve, and integrating compound delivery into a single barge mobilisation sequence reduces total project cost in ways that sequential site-built builds cannot.

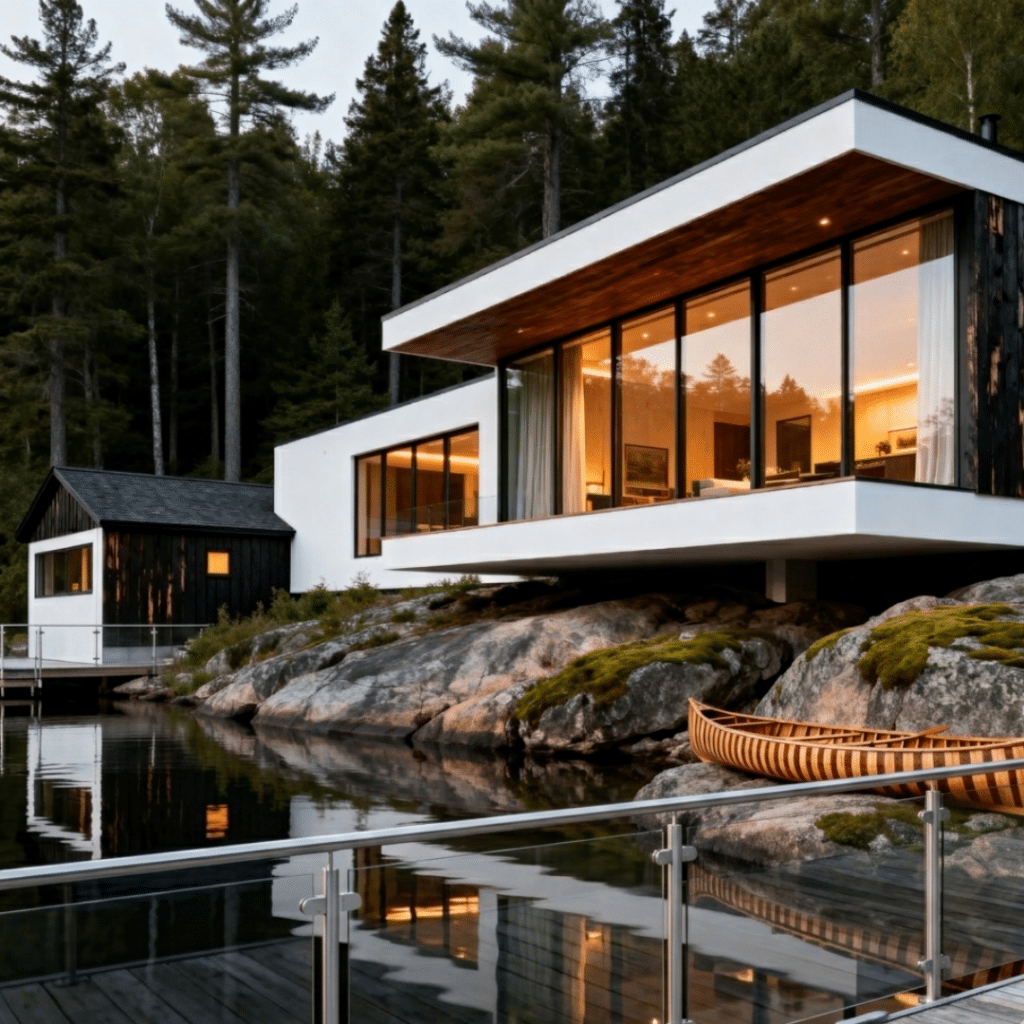

Main Cottage — Scale, West-Facing Orientation, and System Selection
A flagship Lake Joseph prefab cottage typically runs 2,500 to 6,000 sq ft across two to three storeys.
West-facing and southwest-facing exposures drive elongated plan forms presenting the widest glazed elevation toward the water.
A Lake Joseph compound is not a single build — it’s a coordinated system of structures, permits, and delivery logistics planned together from day one.
The interior finish quality Lake Joseph’s design standard demands is achievable in a controlled factory environment:
• Modern white oak flooring continuing up the wall and across the ceiling
• Sliding glass partitions opening the living space to lake views
• Structural curtain walls enabling true floor-to-ceiling glazing without heavy steel framing
• A simple clean material palette that holds its own against the finest custom homes on the lake
My Own Cottage’s North Star at 2,513 sq ft from CAD $899,500 and Excelsior at 2,261 sq ft from CAD $949,500 are the primary Lake Joseph recommendations at the premium tier.
Boathouse — Township Constraints and Delivery Integration
Maximum height 7.6 metres. Habitable upper-storey space requires a 61-metre setback — effectively limiting upper-level guest accommodation at most lots.
The Township requires a building permit and site plan approval for the boathouse separately from the main cottage; both can be submitted concurrently but are evaluated independently.
Prefab boathouse components — wall panels, roof trusses, dock decking — can be barged to site as part of the main cottage delivery operation, reducing total crane days when intelligently sequenced.
Bunkie and Guest Cabin — The Single Crane Day Advantage
A single factory-built module of 400 to 800 sq ft — four-season insulated, fully finished, with a full bathroom, sleeping loft, and kitchenette — craned into position in a single day and occupied within weeks of delivery.
My Own Cottage’s Fox Den at 505 sq ft from CAD $229,500 and Lake View at 741 sq ft from CAD $284,500 are sized within Township accessory structure limits.
The high-quality build achievable in a controlled factory environment consistently exceeds what is possible on a remote Lake Joseph island on a weather-sensitive barge schedule.
For the complete compact model range within Muskoka’s accessory structure size limits see our small prefab homes Muskoka guide.
Sauna, Dock, and Outdoor Structures
A lakeside sauna assembled by a single trade crew requires no crane involvement.
Dock systems require a Marine Structure Permit from the Township and potentially a Navigable Waters Protection Act permit from Transport Canada — both applied for simultaneously with the main cottage building permit.
For the complete guide to prefab cottage investment programming including STR licensing and Tarion coverage see our prefab cottages Muskoka guide.
For the bunkie regulatory framework by township see our prefab bunkie Muskoka guide.
Four-Season Performance at the Lake Joseph Price Point
At CAD $2.5M to $10M-plus, four-season is the minimum expectation for a primary recreational residence — not an upgrade option.
Factory-built construction is uniquely suited to the quality-controlled SIP and ICF integration that genuine four-season performance requires:
• Consistent vapour barrier continuity
• Insulation accuracy
• Air barrier integrity more reliably achieved in a manufacturing facility than on a remote Canadian Shield lot in variable weather
My Own Cottage’s Lake Joseph four-season specifications include R-28 to R-40 above-grade wall assemblies using spray polyurethane foam, R-60 attic insulation, triple-glazed Low-E argon windows, cold-climate air-source heat pump systems rated for minus 30°C, and in-floor radiant heating systems.
This means your home is warm underfoot, silent, and architecturally uncompromising.
For the complete seasonal versus four-season OBC classification framework including Tarion warranty and CMHC eligibility see our prefab cottages Muskoka guide.
All-In Costs for a Prefab Home on Lake Joseph
Factory pricing is the starting point and the most consistently misunderstood component of a Lake Joseph prefab project budget.
The factory price covers what My Own Cottage manufactures and delivers.
Everything between the boundary of your lot and the module’s bearing beam is where projects become unpredictable for buyers who did not model it at the outset.
| Scenario | Factory Price Range | Est. All-In (Excl. Land) |
|---|---|---|
| Road-accessible, premium four-season | CAD $619,500–$949,500 | CAD $1,500,000–$3,500,000+ |
| Water-access-only, compound four-season | CAD $619,500–$949,500+ | CAD $2,000,000–$5,000,000+ |
| Island lot, full estate compound | CAD $949,500+ custom | CAD $3,500,000–$10,000,000+ |
Excludes land: CAD $2,000,000 to $6,250,000-plus. HST at 13 percent applies. Confirm development charges directly with the Township.
Site-Work Add-Ons Specific to Lake Joseph
• Barge-plus-crane-plus-staging from Port Sandfield or Foots Bay: CAD $25,000 to $80,000
• Helical pier foundation on island bedrock: CAD $18,000 to $45,000
• Tree cutting permit and arborist assessment under By-law 2022-107: CAD $3,000 to $8,000
• Site alteration permit for buffer zone access: CAD $2,000 to $5,000
• Conservation Authority permit and Natural Heritage Evaluation where required: CAD $5,000 to $25,000
• Ontario Land Surveyor for high-water mark establishment: CAD $4,000 to $8,000
• Geotechnical assessment before foundation design: CAD $6,000 to $15,000
• Advanced septic system (OBC Part 8 tertiary or sand filter): CAD $35,000 to $85,000
• Drilled well through Shield bedrock: CAD $12,000 to $30,000
• Rock-blasting contingency where required: CAD $75,000 to $150,000-plus
• Off-grid power for island lots: CAD $40,000 to $120,000
• Soft costs – architect, environmental planner, licensed septic designer, legal: CAD $100,000 to $250,000-plus
My Own Cottage provides complete all-in estimates at the first consultation — before any model is selected and before any contract is signed.
For verified all-in cost scenarios across all Muskoka lot types see our Muskoka prefab home prices guide.
Premium Models for Lake Joseph Estate Builds
At Lake Joseph’s price point, My Own Cottage’s premium model tier is the appropriate starting point for any four-season build. Every model can be adapted as a fully custom home with the interior finish quality the lake’s design standard demands.
Titan — 2,971 sq ft | 3 bed / 3 bath | From CAD $799,500 North Star — 2,513 sq ft | 3 bed / 3 bath | From CAD $899,500 Excelsior — 2,261 sq ft | 3 bed / 3 bath | From CAD $949,500
For compound bunkie and guest cabin programming within Township accessory structure limits: Fox Den — 505 sq ft | 1 bed / 1 bath | From CAD $229,500 Lake View — 741 sq ft | 1 bed / 1 bath | From CAD $284,500
Every model is available with four-season OBC Climate Zone 6 specifications, Muskoka Room additions, R-28 to R-40 spray foam insulation packages, and off-grid utility packages for island lots.
All models are engineered for delivery to Lake Joseph lots including water-access and island properties. Custom design consultations at no charge.
My Own Cottage — Prefab Homes for Lake Joseph Waterfront and Island Lots
My Own Cottage is based in Orillia — within the Muskoka watershed and on the primary Highway 11 delivery corridor for the Township of Muskoka Lakes — and delivers OBC compliant prefab homes across Lake Joseph including the Port Sandfield corridor, Hamer Bay, Foots Bay, Yoho Island, Stanley House Road, and the Whalon Bay trophy-estate corridor.
We are one of the few prefab home builders in Ontario with the site assessment process, marine contractor coordination experience, Port Sandfield and Foots Bay staging logistics knowledge, ZBL 2014-14 submission experience, and Tree Conservation By-law 2022-107 sequencing expertise.
We serve the full range of Lake Joseph lot types — from road-accessible shoreline properties to remote island lots where every component of the construction project arrives by barge.
A completed Lake Joseph prefab home — illustrating how site constraints, permit sequencing, and modular construction translate into a finished four-season cottage on Canadian Shield granite.
Every Lake Joseph project begins with a complete site assessment confirming lot type, ZBL 2014-14 WR zoning classification, tree permit requirements and sequencing, Conservation Authority jurisdiction, barge staging area and module delivery logistics, foundation suitability, compound build sequencing, and verified all-in cost.
This always happens before any home design is selected and before any contract is signed.
OBC compliant. HCRA registered. Tarion enrolled on every build. Verify our active registration at the Ontario Builder Directory before signing any purchase agreement.
“We felt absolutely well taken care of. Feedback was always prompt, very professional, yet personal and individualized. Above all, the information provided in advance was very detailed and extremely helpful. My Own Cottage Inc. is absolutely recommendable!” ⭐⭐⭐⭐⭐ — Ilva Drumm, Muskoka, Ontario
No surprises. No hidden costs. No pressure.
🧑💼 Request a Free Consultation
📲 Call Us Directly: (705) 345-9337
🏘️ View Our Design Catalogue
✅ Ontario-Built | ⚡ Energy-Efficient | 🏡 Fully Customizable | 🚚 Fast Delivery
Alternatively, for your convenience, you can also simply fill out the contact form below and we’ll get back to you soon! 👇
Contact Us
We usually respond within 24 hours!
- Comprehensive Warranty
- Best Price Guarantee
- Exceptional Service
Frequently Asked Questions — Prefab Homes Lake Joseph
Can you build a prefab home on a water-access island lot on Lake Joseph?
Yes — prefab and modular homes are legal on Lake Joseph island and water-access-only lots under ZBL 2014-14.
The permit process is more layered than on mainland lots: a tree cutting permit under By-law 2022-107 must precede any site clearing, a Conservation Authority Section 28 permit is required alongside the Township building permit, and a site alteration permit governs any grading within the 15.2-metre buffer.
Delivery is managed by barge from Port Sandfield or Foots Bay with crane-set installation on pre-installed helical piers.
My Own Cottage coordinates the complete marine delivery and permit management process for every Lake Joseph island lot project.
What are the shoreline setbacks for new construction on Lake Joseph?
The minimum setback from the high water mark to any principal dwelling is 15.2 metres (50 feet) under ZBL 2014-14.
This governs both structure placement and crane landing areas on water-access lots — modules cannot be permanently set within the buffer.
The high water mark must be established by a licensed Ontario Land Surveyor, not estimated from the visible waterline, which can sit 2 to 5 metres waterward of the legal mark — particularly during periods of elevated water levels. OLS fees on a Lake Joseph waterfront lot: CAD $4,000 to $8,000.
What are the zoning bylaws for new construction on Lake Joseph?
The Township administers Lake Joseph land use under ZBL 2014-14.
Key provisions every home buyer must confirm before purchasing land: the 15.2-metre front yard setback, mandatory 15.2-metre natural vegetation buffer for lots registered after December 21, 1998, maximum boathouse height of 7.6 metres, the 61-metre setback for habitable upper-storey boathouse space, and the tree cutting permit requirement under By-law 2022-107 for any tree removal anywhere on the lot.
A compact modular footprint achieves more living space with less ground coverage — making the 50 percent lot disturbance limit easier to satisfy than conventional site-built construction.
What permits are required for a prefab home on Lake Joseph?
Most Lake Joseph waterfront prefab builds require four approvals in the correct sequence.
The tree cutting permit under By-law 2022-107 comes first — fully approved before any site clearing begins.
The site alteration permit, Township building permit, and Conservation Authority Section 28 permit are then initiated simultaneously — submitting them sequentially is the most consistent cause of missing the May-to-October barge delivery window.
Dock structures additionally require a Marine Structure Permit from the Township.
My Own Cottage manages the complete permit process for every Lake Joseph build. See our prefab home permits Muskoka guide for the complete four-layer framework.
How much does a prefab home cost on Lake Joseph?
All-in costs vary by lot type and compound scope.
Road-accessible premium four-season builds: CAD $1,500,000 to $3,500,000-plus.
Water-access compound builds: CAD $2,000,000 to $5,000,000-plus.
Full island estate compounds: CAD $3,500,000 to $10,000,000-plus.
Site costs most consistently underestimated: barge-plus-crane-plus-staging (CAD $25,000 to $80,000), tree cutting permit and arborist assessment (CAD $3,000 to $8,000), advanced septic system (CAD $35,000 to $85,000), and soft costs including architect and legal fees (CAD $100,000 to $250,000-plus).
Land is additional: CAD $2,000,000 to $6,250,000-plus. My Own Cottage provides complete all-in estimates at the first consultation.
How long does it take to build a prefab cottage on Lake Joseph?
From contract signing to occupancy: 14 to 24 months, governed by permit sequencing, the barge season window, and compound phasing rather than factory production time.
Factory manufacturing takes eight to sixteen weeks — running simultaneously with site preparation and permit processing through the parallel build model.
The tree cutting permit is the most consistently underestimated variable: submitted late, it can push foundation installation past the barge delivery window and cost a full construction season.
Buyers who front-load land due diligence and submit the tree permit before design is finalized consistently achieve the shorter end of the timeline range.
What are the best prefab home designs for a Lake Joseph cottage?
The best cottage designs for Lake Joseph prioritise west-facing glazed elevations for the lake’s legendary evening light, structural curtain walls achieving true floor-to-ceiling glass, elongated plan forms maximising the lake-facing facade, and a modern white oak and cedar material palette that holds its own against the finest custom homes on the lake.
My Own Cottage’s Titan at 2,971 sq ft, North Star at 2,513 sq ft, and Excelsior at 2,261 sq ft lead the premium model recommendations.
For compound bunkie programming within Township accessory structure limits, the Fox Den at 505 sq ft and Lake View at 741 sq ft are correctly sized.
Can I customize a prefab home for my Lake Joseph lot?
Yes — and on Lake Joseph, customization is not optional.
Your lot’s orientation, setback envelope, mature tree canopy, compound programming requirements, and Township Site Plan Control finish requirements all shape the floor plan before a single factory drawing is produced.
The building technique distinction between a custom site build and a custom modular build is only in where the components are manufactured — there is no compromise on design integrity or finish quality.
Common Lake Joseph customizations include cantilevered structural forms over granite faces, lake-facing glazing optimized for southwest sunset exposure, Muskoka Room additions, and off-grid utility configurations for island lots.
How do I finance a prefab home on Lake Joseph?
CSA A277 certified modular homes on permanent foundations qualify for conventional mortgage financing and CMHC insured construction mortgages.
At Lake Joseph’s price point, most buyers deploy equity from existing assets or use construction draw mortgages.
The key financing complexity is the construction draw misalignment: prefab manufacturers typically require 80 percent of the factory price before modules leave the facility, while draw mortgages release funds against on-site milestones.
Island lot and water-access properties attract additional lender scrutiny.
A mortgage broker experienced with Muskoka luxury waterfront property is strongly recommended. See our affordable prefab homes Muskoka guide for the complete financing framework.
What energy-efficient prefab options are available for Lake Joseph?
Factory-built construction is inherently more sustainable than conventional site-built methods on Lake Joseph waterfront lots.
Controlled environment manufacturing reduces material waste, eliminates weather-related degradation, and compresses ground disturbance to a single crane-set day.
My Own Cottage’s four-season specifications approach net-zero ready performance without the full passive house premium: R-28 to R-40 above-grade wall assemblies, R-60 attic insulation, triple-glazed Low-E argon windows, and cold-climate air-source heat pumps rated for minus 30°C.
The Georgian Bay and Parry Sound regions share Lake Joseph’s Climate Zone 6 to 7 designation — the same building envelope standards apply across cottage country Ontario.
Buyers evaluating the Georgian Bay and Parry Sound archipelago alongside Lake Joseph will find a materially different build environment — see our prefab homes on Georgian Bay guide.
Who builds prefab homes near Lake Joseph?
My Own Cottage is an OBC compliant, HCRA registered, Tarion enrolled prefab home builder serving Lake Joseph and the full Township of Muskoka Lakes — based in Orillia, 54 kilometres south of Bracebridge via Highway 11. Our service area covers the complete Lake Joseph shoreline including Port Sandfield, Hamer Bay, Foots Bay, Yoho Island, Stanley House Road, and the Whalon Bay trophy-estate corridor.
We are one of the few home builders in Ontario with Port Sandfield and Foots Bay staging logistics knowledge, ZBL 2014-14 and Tree Conservation By-law 2022-107 sequencing expertise to serve every Lake Joseph lot type.
Is a turnkey prefab solution available for Lake Joseph waterfront lots?
Yes — My Own Cottage’s Lake Joseph build process is fully managed from first site assessment through occupancy permit.
Our project managers coordinate tree permit sequencing, Conservation Authority and Township permit submission, geotechnical assessment, marine contractor and barge staging coordination, factory production scheduling, site preparation trades, module delivery and crane-set, on-site finishing, and septic and well commissioning.
Homeowners do not manage contractor scheduling, regulatory compliance, or marine logistics independently at any stage.
The complexity of a Lake Joseph waterfront prefab build is absorbed by My Own Cottage’s project management framework — not by the buyer.
Verified External Resources
Township of Muskoka Lakes — Building Permits and Inspections — Primary source for building permit requirements, application process, and septic permit administration on Lake Joseph.
Township of Muskoka Lakes — Comprehensive Zoning By-law 2014-14 (Consolidated) — Authoritative source for the 15.2-metre setback, boathouse height maximum of 7.6 metres, natural vegetation buffer provisions, and all WR zone parameters cited in this guide.
Township of Muskoka Lakes — Tree Conservation By-law 2022-107 — Governs tree cutting permit requirements on Lake Joseph properties — directly relevant to site clearing, crane swing path preparation, and the correct permit sequencing for every prefab build on the lake.
Township of Muskoka Lakes — Short-Term Rental Licensing By-law 2025-049 — In effect 2025. Mandatory STR licensing requirements for new and existing Lake Joseph cottages offered for short-term rental.
Township of Muskoka Lakes — Site Alteration By-law — Governs site alteration permits required for any grading, filling, or equipment placement within 30 metres of the Lake Joseph shoreline.
Ontario Building Code — O. Reg. 332/12 — Primary provincial standard governing all prefab and modular home construction in Ontario.
Ontario Regulation 903 — Wells — Governs drilling and construction of private drilled wells — directly applicable to deep bedrock wells on Lake Joseph lots.
HCRA — Ontario Builder Directory — Verify My Own Cottage’s active HCRA registration before signing any purchase agreement.
Tarion — New Home Warranty Program — Ontario’s statutory new home warranty — Tarion enrollment is mandatory for every My Own Cottage build.
For the complete District-wide guide to prefab home construction across all Muskoka lot types see our prefab homes Muskoka complete buyer’s guide.
For the complete four-layer Muskoka permit framework with verified development charges and the January 1 indexing deadline see our prefab home permits Muskoka guide.
For verified all-in cost scenarios across all Muskoka lot types and model tiers see our Muskoka prefab home prices guide.
For the complete guide to prefab construction on Lake Rosseau waterfront and island lots see our prefab homes Lake Rosseau guide.
For the complete guide to prefab construction on Lake Muskoka waterfront and island lots see our prefab homes Lake Muskoka guide.
For the complete guide to prefab cottages on Muskoka’s Big Three lakes including STR licensing and investment framing see our prefab cottages Muskoka guide.
For the complete guide to sleeping cabin and bunkie builds within Township of Muskoka Lakes accessory structure limits see our prefab bunkie Muskoka guide.
For the complete Ontario prefab overview see our prefab homes Ontario guide.
